Anti Scratch Windows Touch Panel Plug - And - Play High Transmittance
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | Negotiation | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ROHS SGS ISO9001 | Model Number: | AC-C170002 |
|
Detail Information |
|||
| Name: | Windows Touch Screen | Size: | 17 Inch |
|---|---|---|---|
| Structure: | Cover Glass+ITO Glass | Outline Size: | 381.79*314.19mm |
| Operating System: | Windows 7 | Feature: | Anti Interference |
| Transmittance: | 86% Min | Touch Points: | 1-10 |
| High Light: | windows touch screen,multi touch screen overlay kit |
||
Product Description

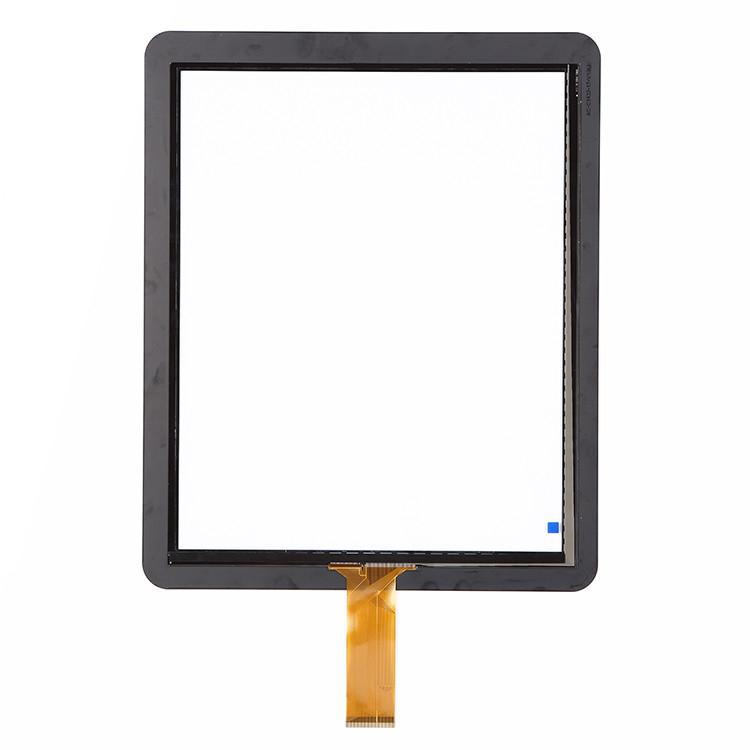

17 Inch Windows Touch Screen , Monitor Touch Screen Windows 7 Anti Interference
Windows Touch Screen Features:
◊ Long service life, touch service life more than 50 million times.
◊ High stability, sensitivity and transmittance, no drifting.
◊ Normally work in various indoor and outdoor environments.
◊ Anti scratch, free from current, voltage and static interference.
◊ 10 touch points, 4096×4096 touch density.
Windows Touch Screen details
| Item | Specification |
| Part Number | AC-C170002 Windows Touch Screen |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Outline size | 381.79*314.19mm |
| View Area | 335.9*268.3mm |
| IC Controller | ILITEK 2511 |
| Total Thickness | 1.85±0.15mm |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| Touch Points | 1-10 |
Windows Touch Screen Features:
G+G means the structure of touch panel using Cover Glass + Sensor Glass. The Sensor Glass have
ITO coating so that it can be sensitive.

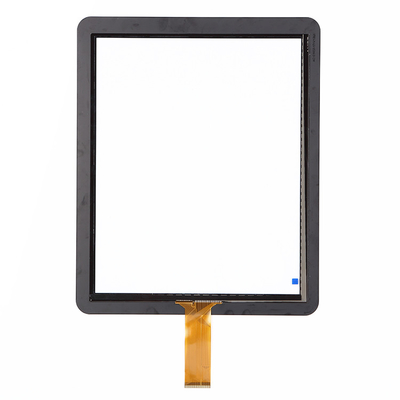

Windows Touch Screen Details
Why choose us?
1.Our factory is a legal,responsible,capable,experienced factory.
2.We have the largest laminting mechine which can up to 65inch.
3.In stock for fast delivery provide the best after-sales service.
4.We can provide the best design solutions according customer requirements.
5.All of our products have been inspected strictly before delivery.
Customer question
1. How about Sample lead time ?
-------Custom samples 12-18work-days,standard samples 5~10work-days.
2. How about mass production lead time ?
------ 15 days after sample confirmed.
3.Shipping?
------Usually we deliver our goods by DHL,UPS, FedEx etc.
