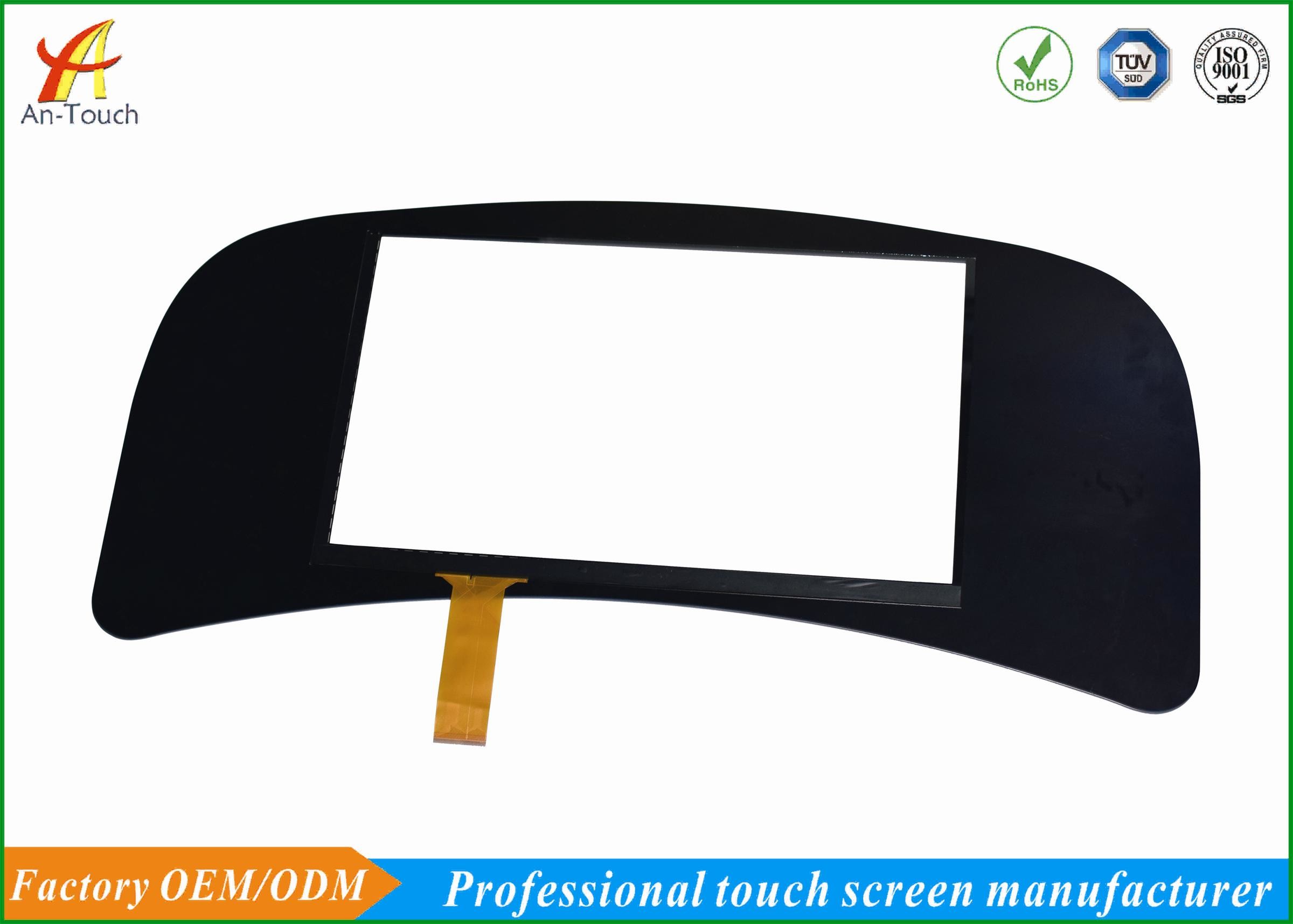

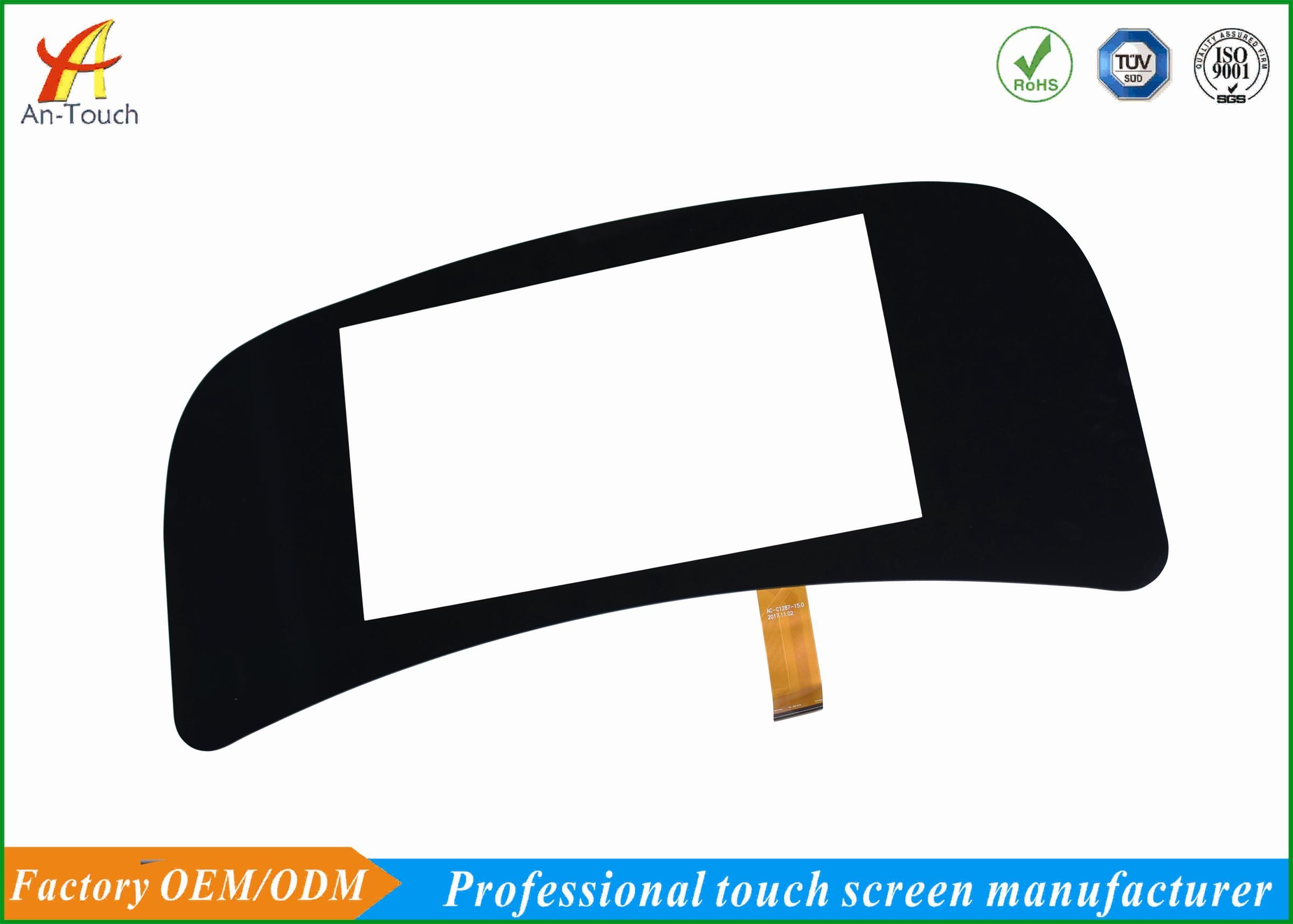

Anti Scratch Windows Touch Panel Plug - And - Play High Transmittance
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | 1/PCS | Price : | 10-100$/pcs / Negotiable |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ROHS SGS ISO9001 | Model Number: | AC-C1888-18.5 |
|
Detail Information |
|||
| Screen Diagonal: | 18.5 | Structures: | Cover Glass+ITO Glass |
|---|---|---|---|
| Outline Dimensio: | 730.2*325.4mm | System Driver: | No Need(USB Plug And Play) |
| Input Method: | Finger Or Capacitive Pen | Warranty: | 12 Months |
| High Light: | windows touch screen,windows 8 multi touch screen |
||
Product Description
| Item | Specification |
| Screen size | 18.5 inch |
| Interface Type | USB |
| Surface Hardness | >6H |
| Surface Treatment | AG/AF/AR |
| IC Controller | ILITEK 2511 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Supply Voltage | 3.3V~5V |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| Cover Lens | 3.0mm |
| Touch Points | 1-10 |
Capacitive Touch Screen:
Capacitive touch screen are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.
Projected Capacitive Touch Screen Features:
Glass to glass structure
1.1mm to 6mm temperted glass
Support cover/size customized
4096×4096 Resolution with linearity error ≤2mm
Size available from 7inch to 65inch.
Multi-touch 1 to 10 touch points.
100 Million touches durability.
Tempered scratch proof cover glass with high impact resistance
G+G means the structure of touch panel using Cover Glass + Sensor Glass. The Sensor Glass have
ITO coating so that it can be sensitive.
Advantages of G+G structure:
(1)High transmittance,>83%.
(2)Hard and anti-wear surface.The hardness is 6H.
(3)Excellent corrosion resistance.
(4)Sensitive touch and stable performance.
Development process:
1.Receive customer's technical files, including PCAP drawing, LCD specification.
2.Recommend standard products or customize products based on customer's requirements.
3.Offer engineering drawing for confirmation and fill in project kick-off form.
4.Make samples according to the confirmed drawing.
5.Debug the samples based on the information on kick-off form, keep the FW.
6.Send the samples to customers for confirmation. Offer all the technical supports with which customer will let the touch panels work well.
7.Pilot production.
8.Mass production.
Why choose us?
1.Our factory is a legal,responsible,capable,experienced factory.
2.We have the largest laminting mechine which can up to 65inch.
3.In stock for fast delivery provide the best after-sales service.
4.We can provide the best design solutions according customer requirements.
5.All of our products have been inspected strictly before delivery.
Customer question
1. How about Sample lead time ?
-------Custom samples 12-18work-days,standard samples 5~10work-days.
2. How about mass production lead time ?
------ 15 days after sample confirmed.
3.Shipping?
------Usually we deliver our goods by DHL,UPS, FedEx etc.
4. Payment term?
------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.
5. How about the warranty?
------ Warranty 1year.
