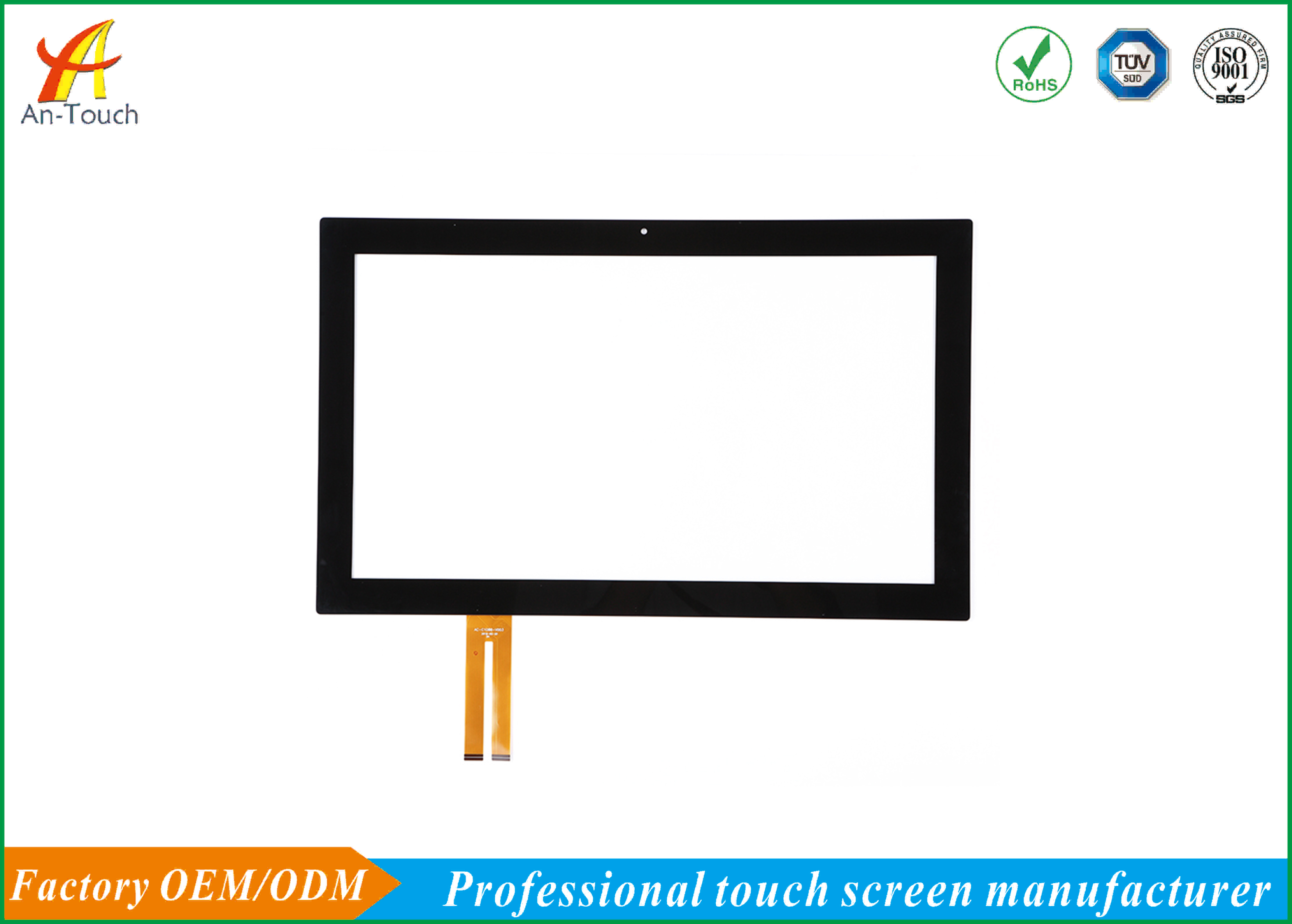

Glass Capacitive Touchscreen Display / Durable 21.5 Inch Touch Screen

Minimum Order Quantity : negotiation Price : Negotiation
Packaging Details : Standard Packing With Carton Delivery Time : 5-8 Work Day
Payment Terms : T/T, Western Union, Paypal Supply Ability : 50000/PCS/Month
Place of Origin: China Brand Name: antouch
Certification: ISO9001 Model Number: AC-C1062-21.5

Detail Information

Name: Capacitive Touchscreen Display Structures: Glass
Feature: Durable Outline Dimensio: 532.5*325.6mm
Module View Area: 475.5*266.6mm Size: 21.5 Inch Touch Screen
Operating System: XP Win7、8 Android Linux Interface Mode: USB/IIC/RS232
High Light:

usb capacitive touch screen

,

capacitive multi touch screen

Product Description

Glass Capacitive Touchscreen Display / Durable 21.5 Inch Touch Screen



Capacitive Touchscreen Display Features:

1) Response speed fast, smooth touch.

2) Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings.

3) Precision-touch capacitive screen is using the body's current-sensing.

4) Accuracy up to 99% proficient in writing, no break no drift.

5) Any point can withstand more than 50 million times touch.

6) Explosion-proof and durable, scratch-resistant, anti-collision, anti-radiation within the core capacitive touch ensure stable, anti-interference ability.

7) Operating systems strong compatibility.



Advantages of G+G structure:

(1)High transmittance,>83%.

(2)Hard and anti-wear surface.The hardness is 6H.

(3)Excellent corrosion resistance.

(4)Sensitive touch and stable performance.



Capacitive Touchscreen Display Application.

  1. Electronic catalogs.
  2. Gaming, lottery, and amusement.
  3. Public pay phones.
  4. Multimedia marketing.
  5. Banking/financial transactions.
  6. Industrial control rooms.

Capacitive Touchscreen Display details



Item Specification
Part Number AC-C1062-21.5 Capacitive Touchscreen Display
Outline size 532.5*325.6mm
View Area 475.5*266.6mm
IC Controller ILITEK 2510/WD8752
Operating temperature -20℃~70℃
Storage temperature -30℃~80℃
Total Thickness 2.0±0.15mm
Transmittance 86% Min
Interface Mode USB/IIC/RS232



Capacitive Touchscreen Display Details

> High accuracy and sensitivity
> Glass + Glass or PET + Glass
> Finger, gloved hand and touch pen activation
> Sensitive and fast response
> Our products have passed CE, FCC, ROHS certification!




Delivery Time:
Samples in stock: 1~3 working days
Customized project: 10~15days for samples
Mass production: 10~18days
