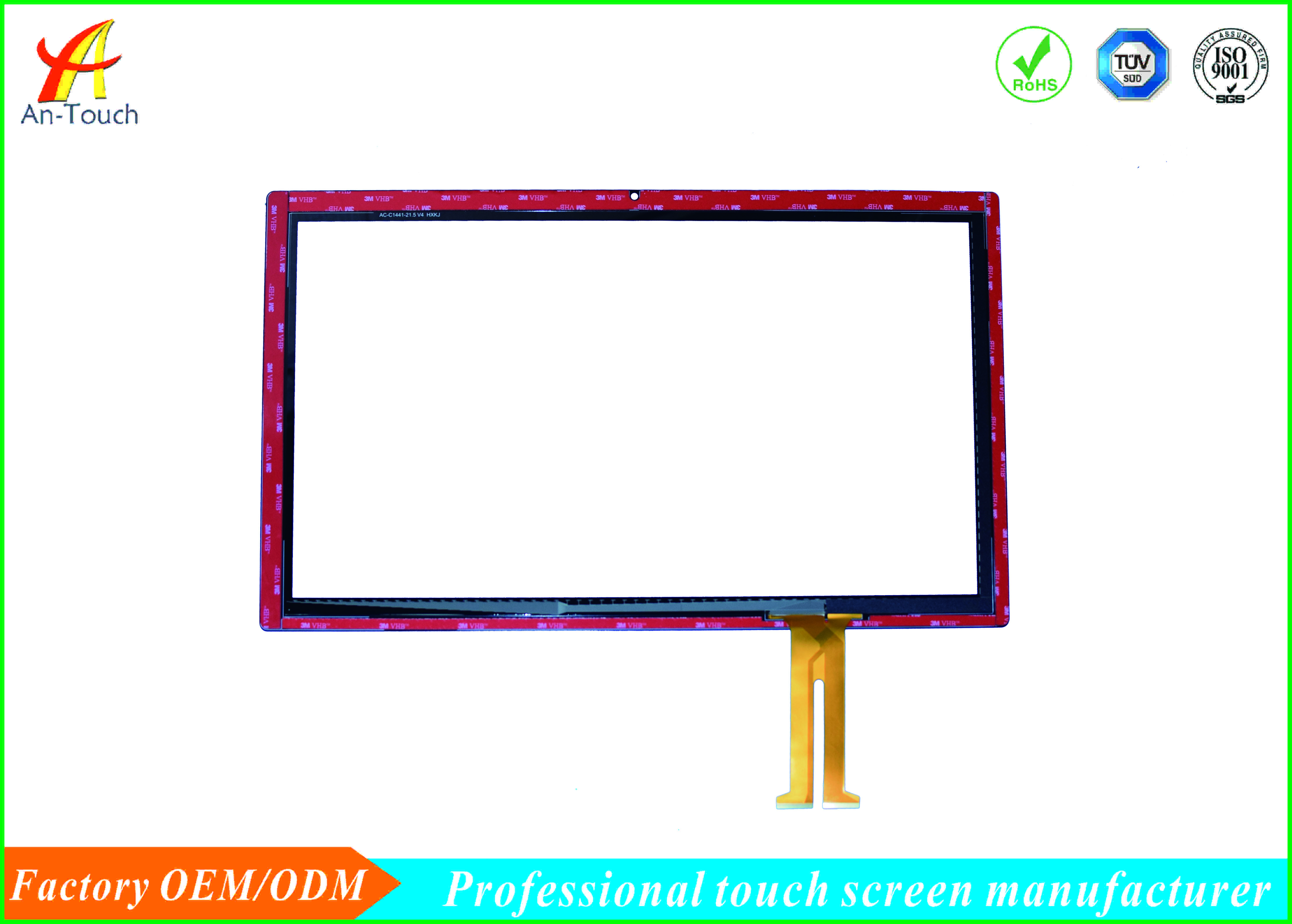

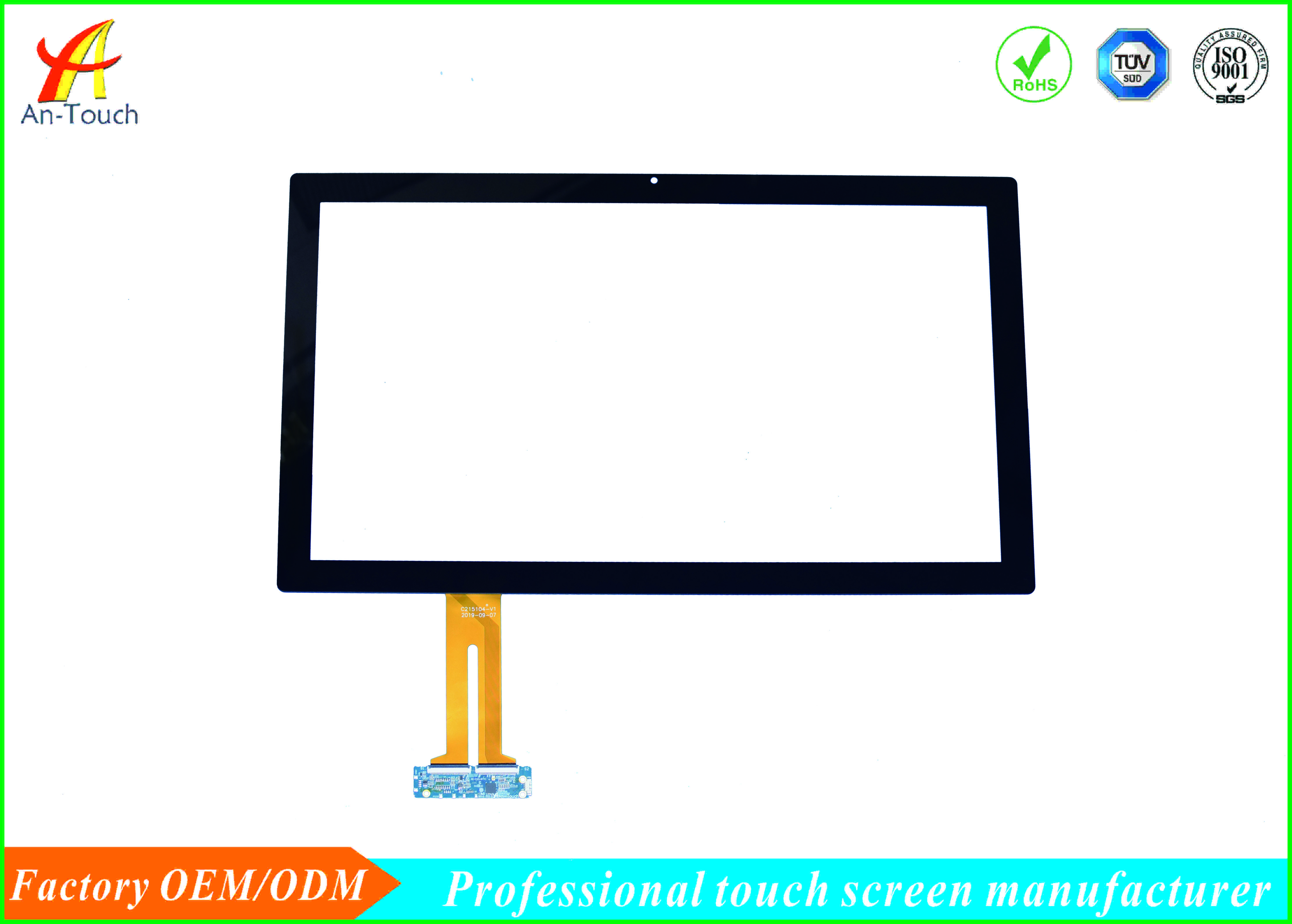

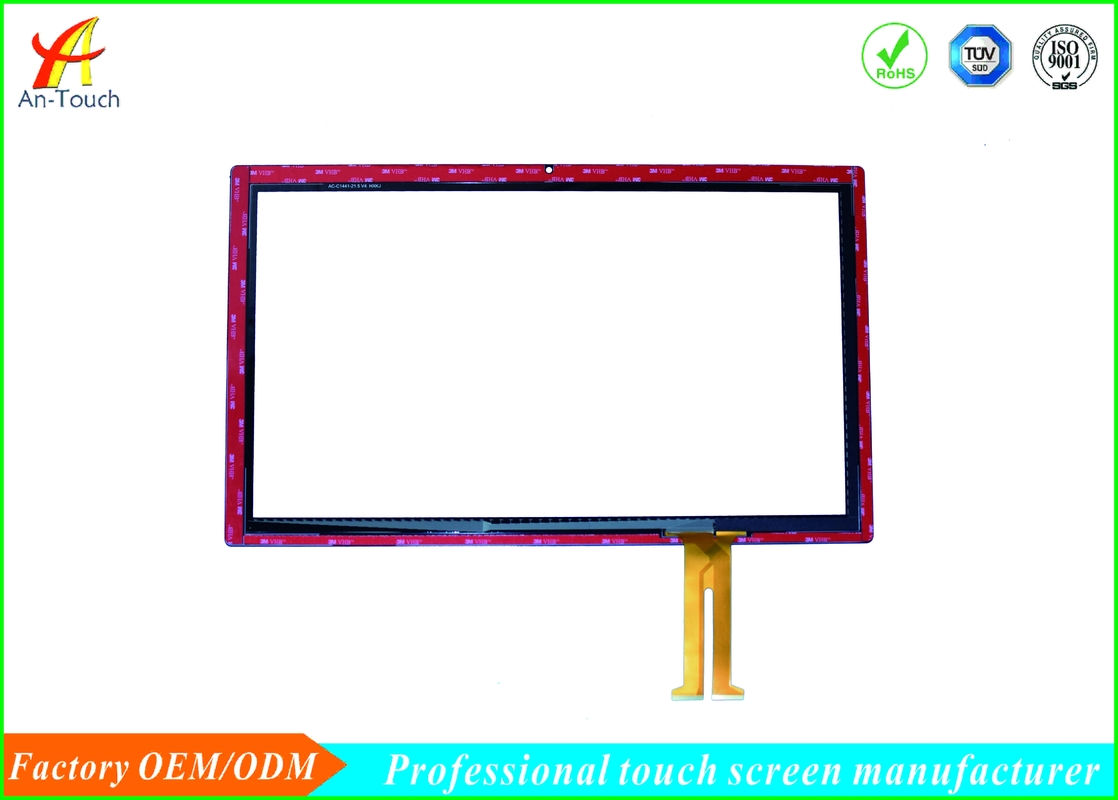

High Resolution Capacitive Touch Panel Display 4096x4096 Fast Response
High Resolution Capacitive Touch Panel Display 4096x4096 Fast Response
High Resolution Capacitive Touch Panel Display 4096x4096 Fast Response High Resolution Capacitive Touch Panel Display 4096x4096 Fast Response High Resolution Capacitive Touch Panel Display 4096x4096 Fast Response
Contact Now

High Resolution Capacitive Touch Panel Display 4096x4096 Fast Response

Minimum Order Quantity : negotiation Price : Negotiation
Packaging Details : Standard Packing With Carton Delivery Time : 5-8 Work Day
Payment Terms : T/T, Western Union, Paypal Supply Ability : 50000/PCS/Month
Place of Origin: China Brand Name: antouch
Certification: ISO9001 Model Number: AC-C1441-21.5

Detail Information
Name: Capacitive Touch Panel Advantage: High Accuracy
Surface Hardness: >6 Hour Outline Dimensio: 521.65*313.16mm
Module View Area: 475.5*266.6mm IC Controller: ILITEK 2312
Operating System: XP Win7、8 And Android Linux Interface Mode: USB/IIC/RS232
High Light:

capacitive touchscreen display

,

usb capacitive touch screen

Product Description

High Resolution Capacitive Touch Panel Display 4096x4096 Fast Response



Capacitive Touch Panel Advantages



  1. There are a lot of water droplets on the surface of touch screen,which can still be scribed normally.Freshwater,brine and oil droplets can be normally.
  2. capacitive touch screen + Protective Glass for Normal Use in protective glass shell.The theoretical limit thickness is 20mm,the conventinal thickness is 6 mm,8mm,10mm and 12mm

Capacitive Touch Panel details



AC-C1441-21.5
Item Specification
Part Number AC-C1441-21.5
Structures Cover Glass+ITO Glass
Surface Hardness >6H
Outline size 521.65*313.16mm
View Area 475.5*266.6mm
IC Controller ILITEK 2510
Operating temperature -20℃~70℃
Storage temperature -30℃~80℃
Total Thickness 2.9±0.15mm
Transmittance 86% Min
Interface Mode  USB/IIC/RS232
Operating System XP win7,8 Android Linux
Touch Points 1-10





Capacitive Touch Panel Details

> 4096x4096 Resolution
> USB Interface
> High accuracy and sensitivity
> Glass + Glass or PET + Glass
> Finger, gloved hand and touch pen activation
> Sensitive and fast response

High Resolution Capacitive Touch Panel Display 4096x4096 Fast Response 0
Capacitive Touch Panel Application
  1. Self-service terminals
  2. ATM& Financial terminals
  3. Medical equipment

Development process:

1. Receive customer's technical files, including PCAP drawing, LCD specification.


2. Recommend standard products or customize products based on customer's requirements.


3. Offer engineering drawing for confirmation and fill in project kick-off form.


4. Make samples according to the confirmed drawing.


5. Debug the samples based on the information on kick-off form, keep the FW.


6. Send the samples to customers for confirmation. Offer all the technical supports with which customer will let the touch panels work well.


7. Pilot production.


8. Mass production.

Tag:

usb capacitive touch screen

capacitive touchscreen display

capacitive multi touch screen
