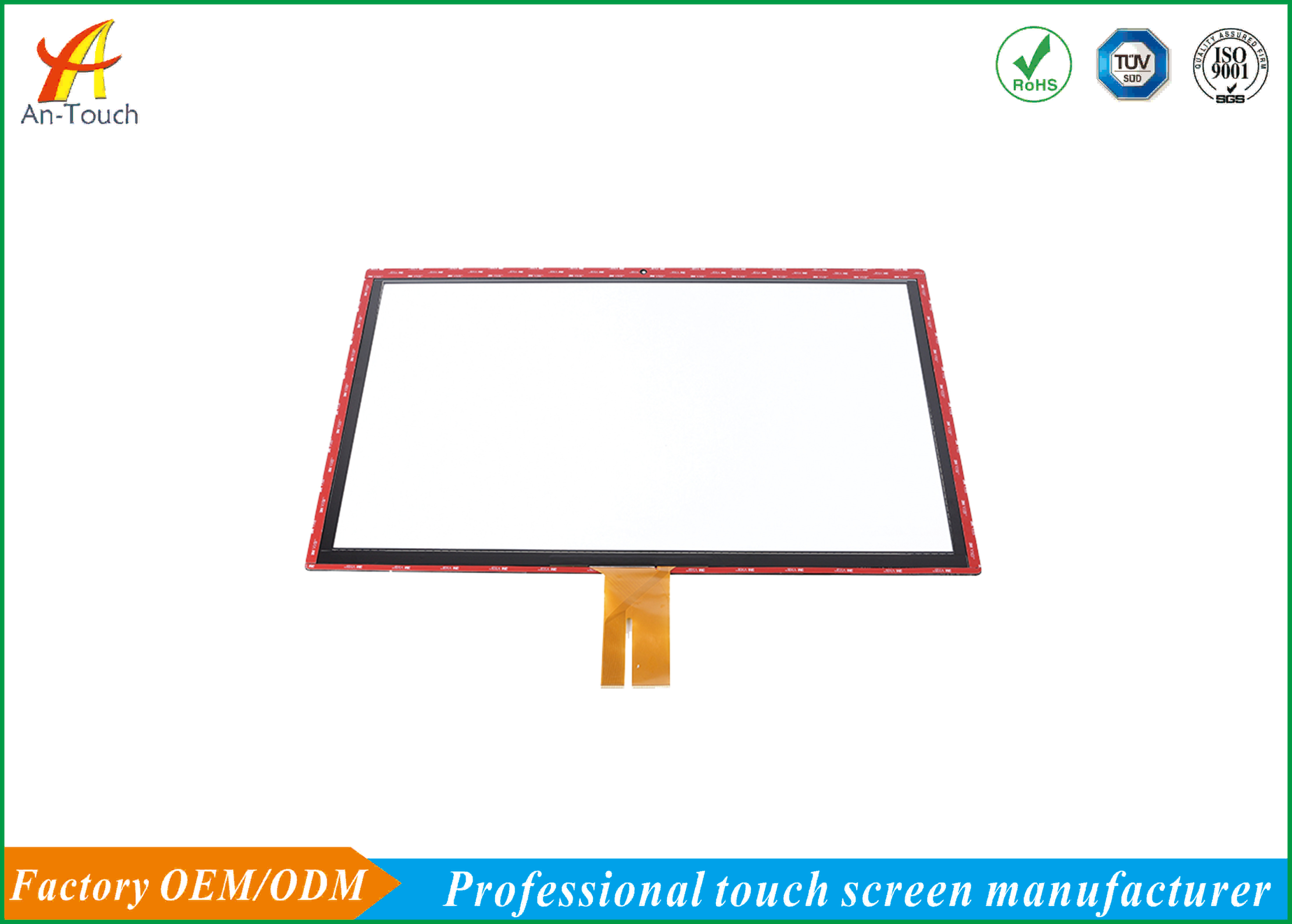

Waterproof Self Capacitive Touch Screen / 32 Inch Transparent Touch Panel

Minimum Order Quantity :	negotiation	Price :	Negotiation
Packaging Details :	Standard Packing With Carton	Delivery Time :	5-8 Work Day
Payment Terms :	T/T, Western Union, Paypal	Supply Ability :	50000/PCS/Month

Place of Origin:	China	Brand Name:	antouch
Certification:	ISO9001	Model Number:	AC-C1085-32.0

Detail Information
Name:	Self Capacitive Touch Screen	Feature:	Waterproof
Size:	32 Inch	Outline Dimensio:	757.12*450.6mm
Module View Area:	699.4*393.84mm	IC Controller:	ILITEK 2312
Operating System:	XP Win7、8 Android Linux	Other Name:	Transparent Touch Panel
High Light:	usb capacitive touch panel , projected capacitive touch screen

Product Description

Waterproof Self Capacitive Touch Screen / 32 Inch Transparent Touch Panel

Self Capacitive Touch Screen Features

Self Capacitive Touch Screen Advantages

Active pen type is complete can cover 7-65 inch.Authoritative certifcation.Precision and linearity,supporting anti-palm mistouch.suspension positioning and pen tip pressure sensing function.
There are a lot of water droplets on the surface of touch screen,which can still be scribed normally.Freshwater,brine and oil droplets can be normally.
capacitive touch screen + Protective Glass for Normal Use in protective glass shell.The theoretical limit thickness is 20mm,the conventinal thickness is 6 mm,8mm,10mm and 12mm

Self Capacitive Touch Screen details

Item	Specification
Part Number	AC-C1085-32.0 Waterproof Self Capacitive Touch Screen / 32 Inch Transparent Touch Panel
Structures	Cover Glass+ITO Glass
Surface Hardness	>6H
Outline size	757.12*450.6mm
View Area	699.4*393.84mm
IC Controller	ILITEK 2312
Transmittance	86% Min
Interface Mode	USB/IIC/RS232
Operating System	XP win7,8 Android Linux
Touch Points	1-10

Self Capacitive Touch Screen

> USB Interface
> High accuracy and sensitivity
> Glass + Glass or PET + Glass

> Finger, gloved hand and touch pen activation
> Sensitive and fast response
> Our products have passed CE, FCC, ROHS certification!

Delivery Time:
Samples in stock: 1~3 working days
Customized project: 10~15days for samples
Mass production: 10~18days
