Unique CTP Lcd Capacitive Touchscreen 10.1 Inch For Self - Help Ordering Machine
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | 1/PCS | Price : | 10-100$/pcs / Negotiable |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | antouch |
|---|---|---|---|
| Certification: | ROHS SGS ISO9001 | Model Number: | AC-C1134-7.0 |
|
Detail Information |
|||
| Screen Size: | 7.0 Inch | Type: | TFT |
|---|---|---|---|
| LCD Ratio: | 16:10 | Signal Type: | LVDS (1 Ch, 6/8-bit) , Connector , 20 Pins |
| Voltage Supply: | 3.3V (Typ.) | Warranty: | 12 Months |
| High Light: | lcd capacitive touchscreen,tft capacitive touchscreen |
||
Product Description

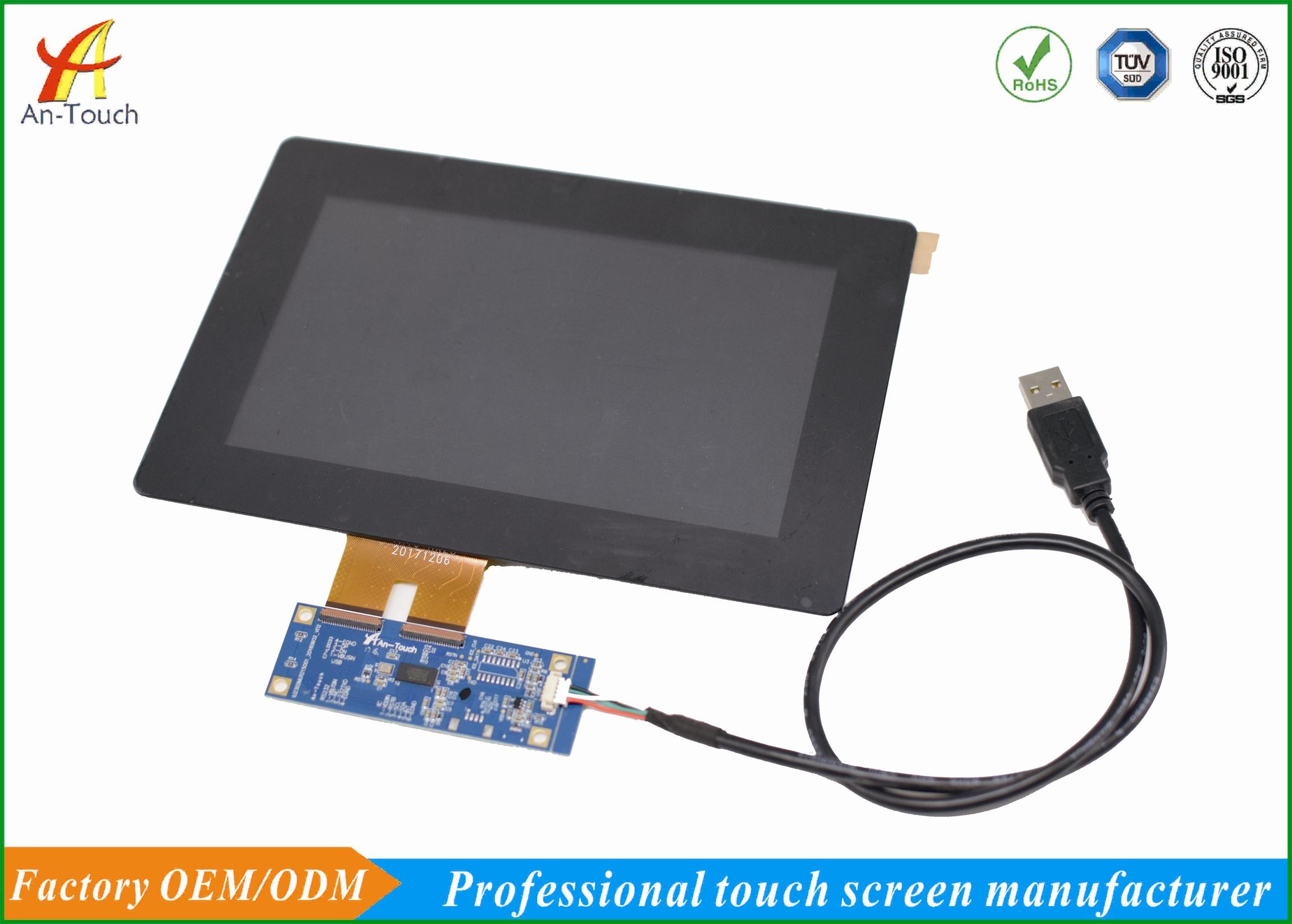

Capacitive Touch Panel Specifications:
| Item | Specification |
| Screen size | 7.0 inch |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Surface Treatment | AG/AF/AR |
| IC Controller | ILITEK 2302 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Supply Voltage | 3.3V~5V |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| System Driver | No need(USB plug and play) |
| Touch Points | 1-10 |
Capacitive Touch Screen:
Capacitive touch screen are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.

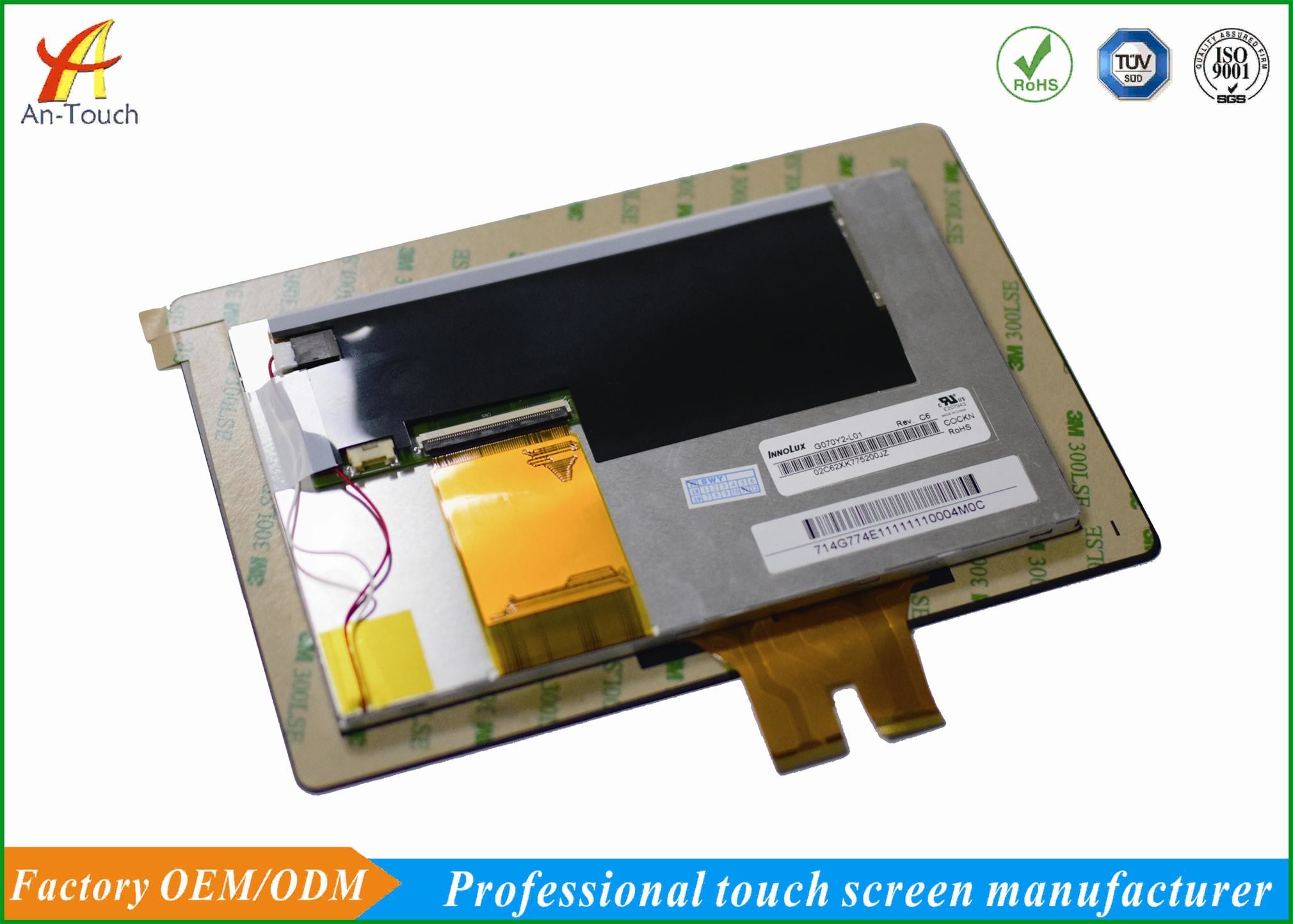

LCD Specifications:
| Manufacturer | INNOLUX |
| Model Name | G070Y2-L01 |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 800(RGB)×480 (WVGA) |
| Arrangement | RGB Vertical Stripe |
| Active | 152.4 × 91.44 (H×V) |
| Outline(mm) | 165 × 104 × 9.83 (H×V×D) |
|
Bezel Area(mm) |
154.6 × 93.64 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Response | 5/11 (Typ.)(Tr/Td) ms |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.2M 72% (CIE1931) |
| Backlight | WLED , 50K hours , With LED Driver |
| Mass | 147/162g (Typ./Max.) |
| Refresh Rate | 60Hz |
| Max. Ratings | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 3.0G (29.4 m/s²) |
Introduce:
The G070Y2-L01 is a 7.0 inch diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called INNOLUX), with an integral WLED backlight system, With LED Driver . It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 95°C , and the maximal vibration level of 3.0G (29.4 m/s²). It's general features are summarized by Panelook in the following: High Color Gamut, Antiglare Surface, 6/8 bit Selectable, Landscape type, Wide Temperature, White LED Backlight, Lamp life ≥ 50K hours, Wide Aspect Ratio, U/D,L/R Reverse . Based on its features, We recommend that this model be applied to Automotive Display, Industrial Application etc.
Application:
►Vending and ticket sales.
►Electronic catalogs.
►Gaming, lottery, and amusement.
►Public pay phones.
►Banking/financial transactions.
►Industrial control rooms.
►Computer-based training.
Development process:
1.Receive customer's technical files, including PCAP drawing, LCD specification.
2.Recommend standard products or customize products based on customer's requirements.
3.Offer engineering drawing for confirmation and fill in project kick-off form.
4.Make samples according to the confirmed drawing.
5.Debug the samples based on the information on kick-off form, keep the FW.
6.Send the samples to customers for confirmation. Offer all the technical supports with which customer will let the touch panels work well.
7.Pilot production.
8.Mass production.
Why choose us?
1.Our factory is a legal,responsible,capable,experienced factory.
2.We have the largest laminting mechine which can up to 65inch.
3.In stock for fast delivery provide the best after-sales service.
4.We can provide the best design solutions according customer requirements.
5.All of our products have been inspected strictly before delivery.
Customer question
1. How about Sample lead time ?
-------Custom samples 12-18work-days,standard samples 5~10work-days.
2. How about mass production lead time ?
------ 15 days after sample confirmed.
3.Shipping?
------Usually we deliver our goods by DHL,UPS, FedEx etc.
4: Payment term?
------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.
5: How about the warranty?
------ Warranty 1year.
