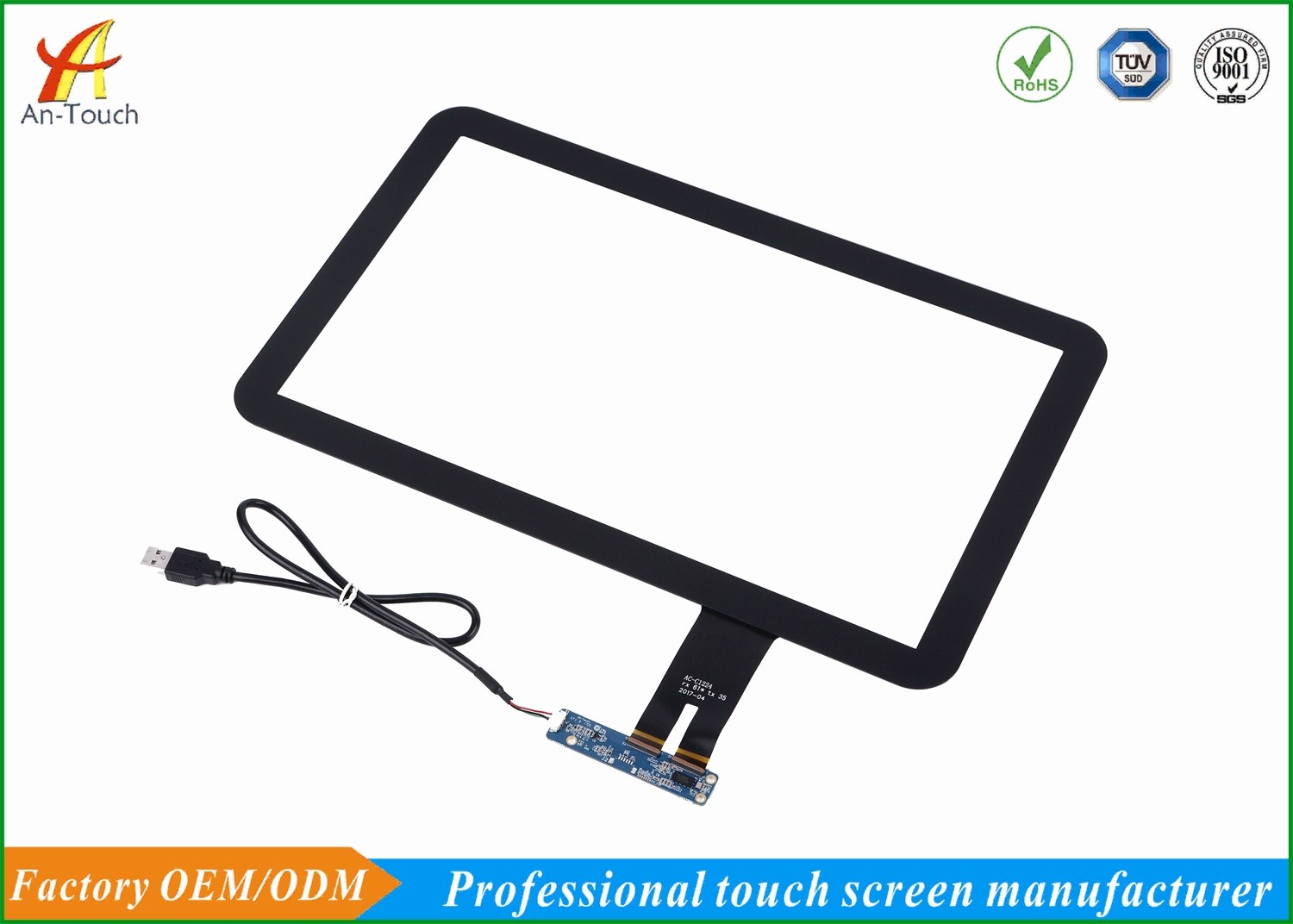

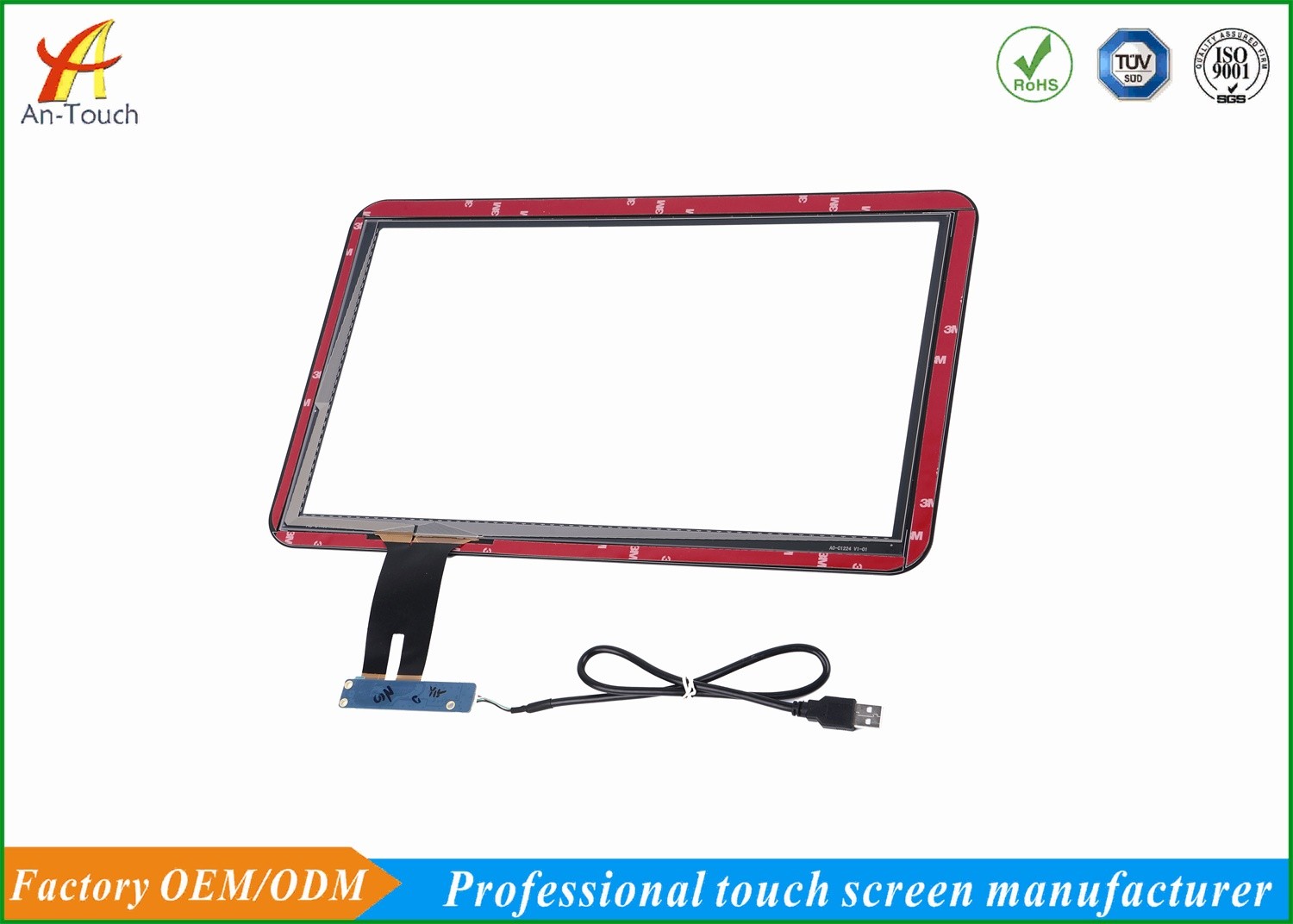

Waterproof Home Automation Touch Screen Panel 13.3 Inch For Furniture Appliance
Contact Person : Devin Jiang
Phone Number : +86 13528582261
| Minimum Order Quantity : | 1/PCS | Price : | 10-100$/pcs / Negotiable |
|---|---|---|---|
| Packaging Details : | Standard Packing With Carton | Delivery Time : | 5-8 Work Day |
| Payment Terms : | T/T, Western Union, Paypal | Supply Ability : | 50000/PCS/Month |
| Place of Origin: | China | Brand Name: | an-touch |
|---|---|---|---|
| Certification: | ROHS SGS ISO9001 | Model Number: | AC-C1103-15.6 |
|
Detail Information |
|||
| Structures: | G+G | Module View Area: | 344.23*193.54mm |
|---|---|---|---|
| Cover Lens: | 1.1mm | Interface Mode: | USB/IIC/RS232 |
| Resolution: | 1280 X 1024 | Ratio: | 16:9 |
| High Light: | home automation touch screen panel,transparent touch screen |
||
Product Description
| Item | Specification |
| Screen size | 15.6 inch |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Surface Treatment | AG/AF/AR |
| IC Controller | ILITEK 2302 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Supply Voltage | 3.3V~5V |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| System Driver | No need(USB plug and play) |
| Touch Points | 1-10 |
Capacitive Touch Screen:
Capacitive touch screen are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.
Projected Capacitive Touch Screen Features:
Glass to glass structure
3mm to 6mm temperted glass
Support cover/size customized
4096×4096 Resolution with linearity error ≤2mm
Size available from 7inch to 65inch.
Multi-touch 1 to 10 touch points.
Tempered scratch proof cover glass with high impact resistance
Application:
►Point-of-information kiosks
►Vending and ticket sales
►Electronic catalogs
►Gaming, lottery, and amusement
►Public pay phones
►Multimedia marketing
►Banking/financial transactions
►Industrial control rooms
►Computer-based training
Development process:
►Receive customer's technical files, including PCAP drawing, LCD specification.
►Recommend standard products or customize products based on customer's requirements.
►Offer engineering drawing for confirmation and fill in project kick-off form.
►Make samples according to the confirmed drawing.
►Debug the samples based on the information on kick-off form, keep the FW.
►Send the samples to customers for confirmation. Offer all the technical supports with which customer will let the touch panels work well.
►Pilot production.
►Mass production.
Customer question
How about Sample lead time ?
-------Custom samples 12-18work-days,standard samples 5~10work-days
How about mass production lead time ?
------ 15 days after sample confirmed
Shipping?
------Usually we deliver our goods by DHL,UPS, FedEx etc.
Payment term?
------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.
How about the warranty?
------ Warranty 1year
