Sensitive Game Touch Screen 23.8 Inch , Large Format Touch Screen Strong Compatibility

Product Description

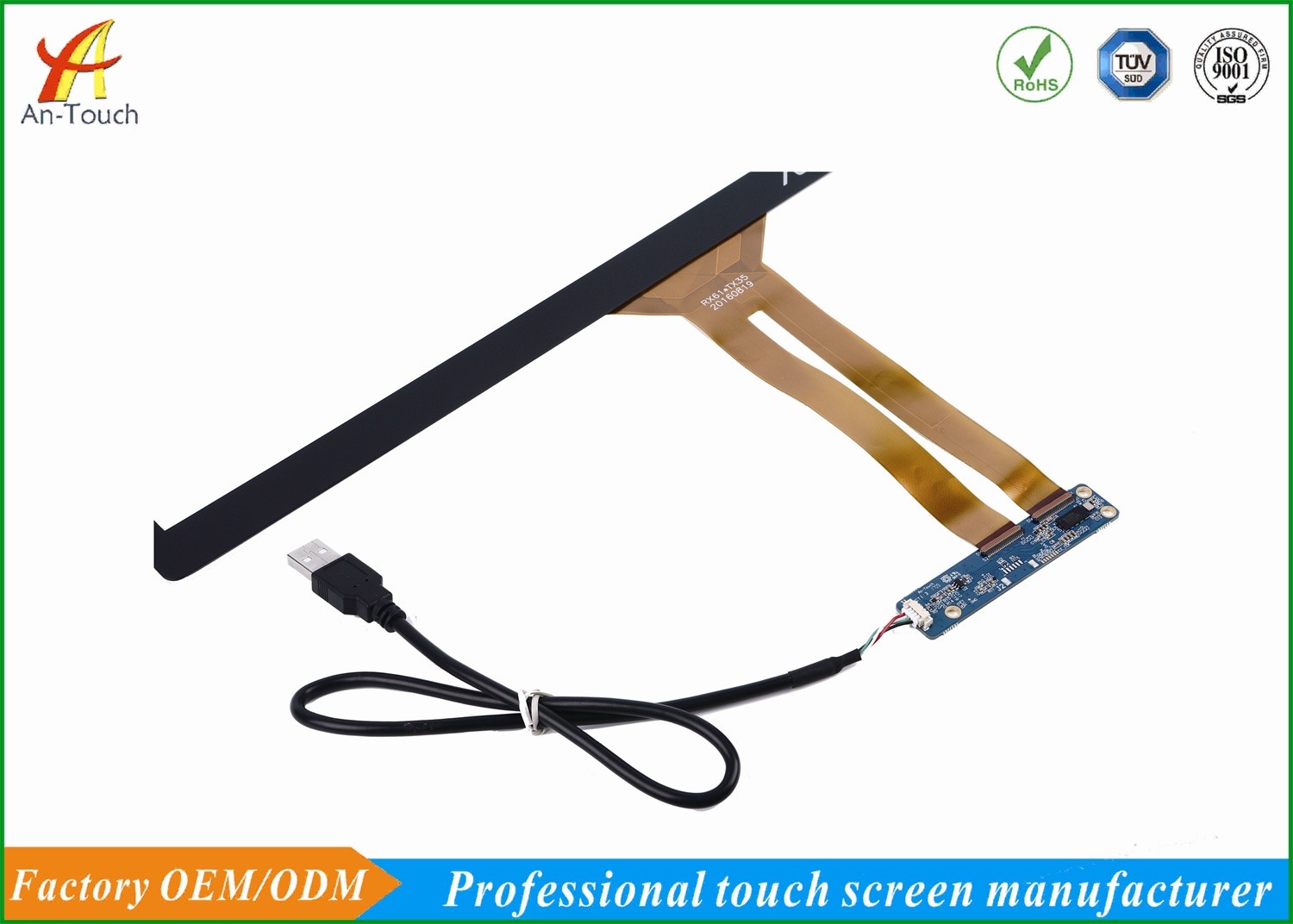

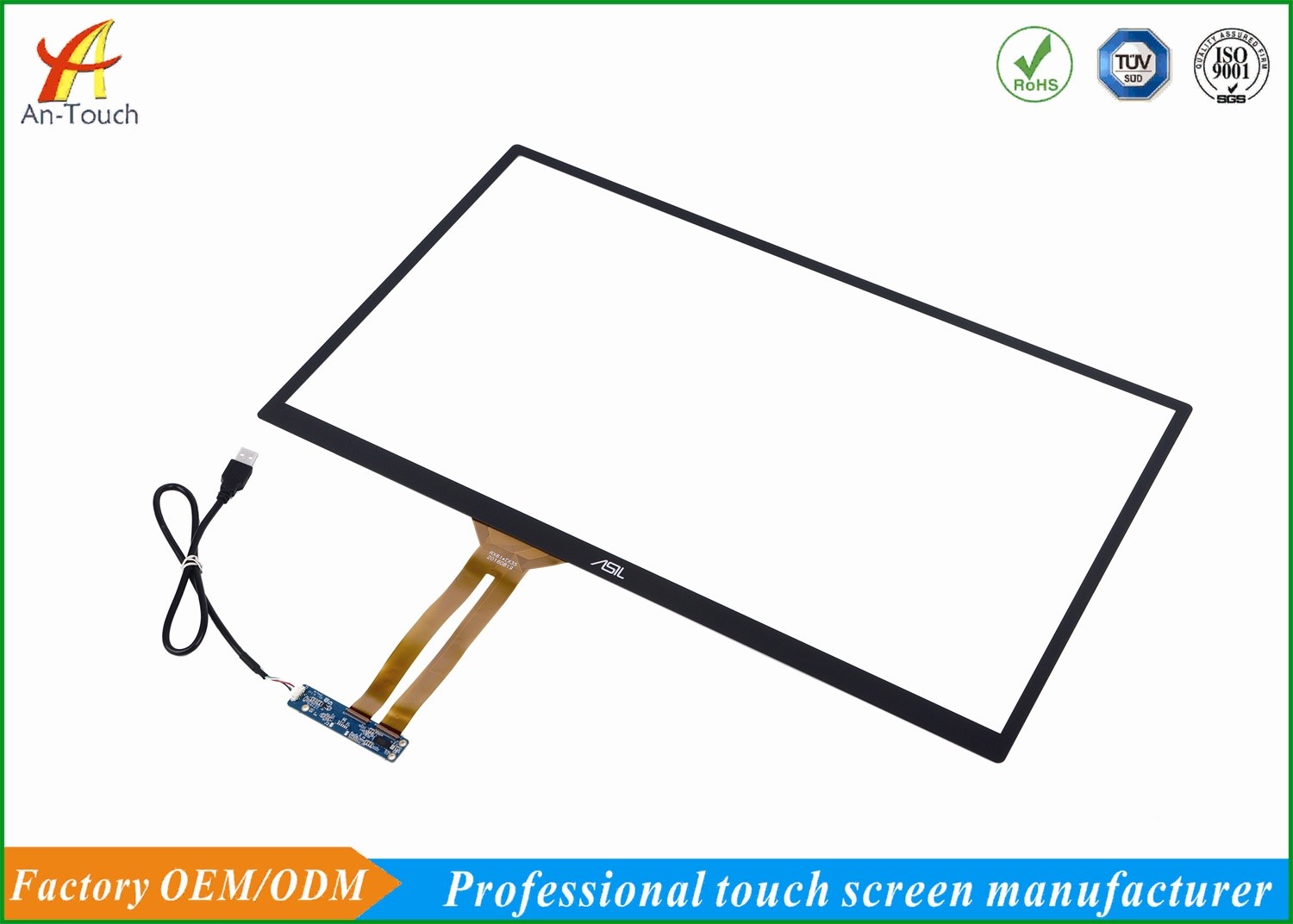

 Sensitive 23.8 Inch Game Touch Screen With Capacitive Touch Panel For Games Table

Product details

Item	Specification
Screen size	23.8 inch
Structures	Cover Glass+ITO Glass
Surface Hardness	>6H
Surface Treatment	AG/AF/AR
IC Controller	ILITEK 2302
Operating temperature	-20℃~70℃
Storage temperature	-30℃~80℃
Supply Voltage	3.3V~5V
Transmittance	86% Min
Interface Mode	USB/IIC/RS232
Operating System	XP win7,8 Android Linux
System Driver	No need(USB plug and play)
Touch Points	1-10



Capacitive Touch Screen:



Capacitive touch screen are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.



Projected Capacitive touch screen Benefits:

1. Response speed fast, smooth touch.

2. Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings.

3. Any point can withstand more than 50 million times touch.

4. Explosion-proof and durable, scratch-resistant, anti-collision, anti-radiation within the core capacitive touch ensure stable, anti-interference ability.

5. Operating systems strong compatibility.

6. Intelligent automatic calibration, use forinternal / external variety of environments.

7.Long life, low maintenance costs.



G+G means the structure of touch panel using Cover Glass + Sensor Glass. The Sensor Glass have

ITO coating so that it can be sensitive.

Advantages of G+G structure:

(1)High transmittance,>83%.

(2)Hard and anti-wear surface.The hardness is 6H.

(3)Excellent corrosion resistance.

(4)Sensitive touch and stable performance.

Delivery Time:

Samples in stock: 1~3 working days

Customized project: 10~15days for samples

Mass production: 10~18days

Customer question

1. How about Sample lead time ?

-------Custom samples 12-18work-days,standard samples 5~10work-days

2. How about mass production lead time ?

------ 15 days after sample confirmed

3. Shipping?

------,Usually we deliver our goods by DHL,UPS, FedEx etc

4. Payment term?

------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment

5. How about the warranty?

------ Warranty 1year
